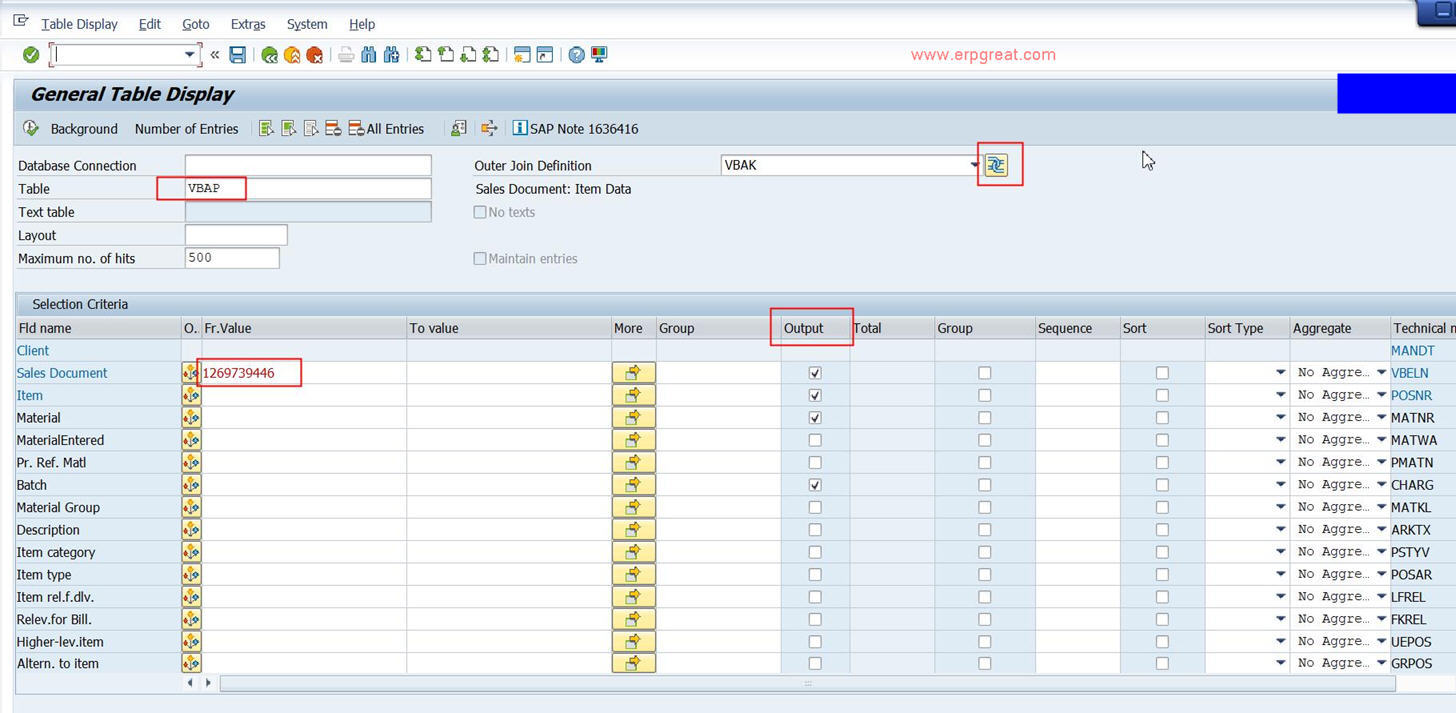

Input the items table name first VBAP
To create the Outer Join Definition, click the Maint. of Relationships button next to it.
Sales Document is my single test data
Output field are the test fields I wish to display

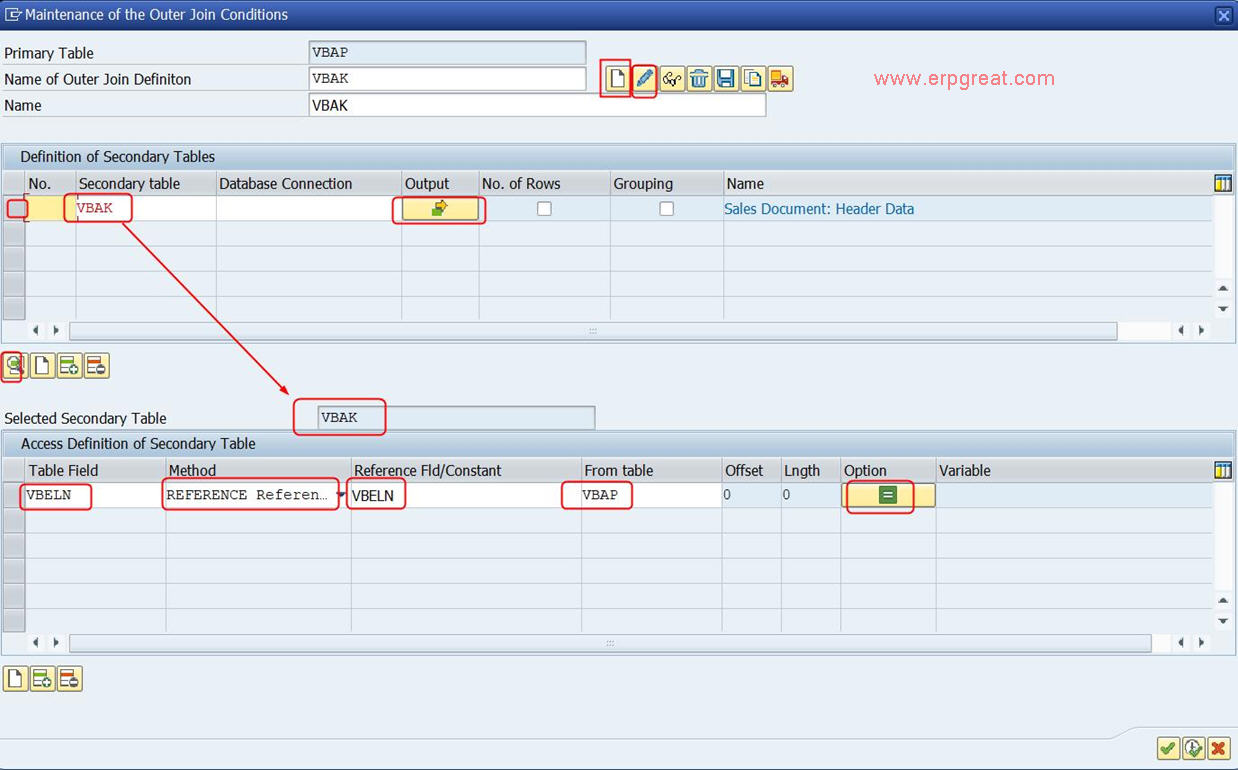

Definition of Secondary Tables section
Name of Outer Join Definition is the Header table VBAK
Create button for initial creation
Change button for subsequent changes
Definition of Secondary Tables is the table I wish to retrieve
Output is the Secondary Tables fields I wish to display
Selected Secondary Table section
I need to select the item table of Definition of Secondary Tables and click the Magnifying Glass so that VBAK will appear on the Selected Secondary Table.
Table Field - VBELN is the field name I wish to select and matched.
Method - I chose REFERENCE as I want VBAK-VBELN to reference the VBAP-VBELN
Reference Fld/Constant - table dictionary field name VBELN
From table - I want to use VBAP
Option - I want Exact match
Click Save button when finished

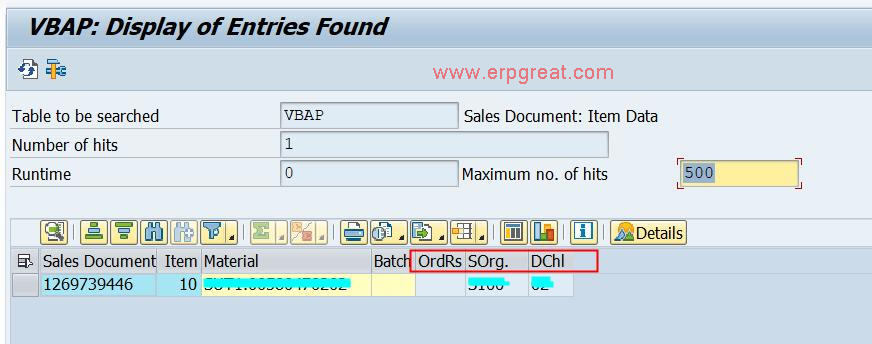

Testing Result
Last three fields are from VBAK which are successfully displayed via Outer Joined SE16H
